Stainless Steel A2 Large Flange Rivet - 16mm
Product Code: SSLF48180
Min Grip Range (mm): 11
Max Grip Range (mm): 13
Shear N: 4500
Tensile N: 6000
Body Mat: Stainless Steel A2
Mandrel Mat: Stainless Steel A2

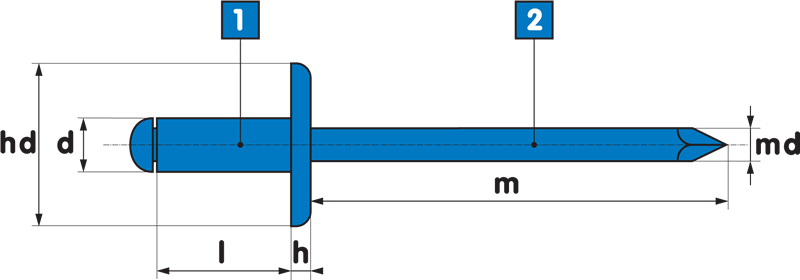

hd: 14.0 + 0.5 / - 1.0 mm
d: 4.8 + 0.08 / - 0.15 mm
l: 18mm
h: 1. 8 +/- 0.30 mm
m: 27.0 mm
md: 2.9 mm
